Name: Cap Hinge Durability and LOF Tester with 8 Test Stations
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-Q58
Price: 4,500.00 USD
Availability: InStock

ホーム製品研究室試験装置

Cap Hinge Durability and LOF Tester with 8 Test Stations

商品の詳細:

起源の場所:	中国
ブランド名:	SKYLINE
証明:	CE, Calibration Certificate, Rosh, CO...
モデル番号:	SL-Q58

お支払配送条件:

最小注文数量:	1
パッケージの詳細:	エクスポートされた合板パッケージ
受渡し時間:	15営業日
支払条件:	L/C、D/A、D/P、T/T、Western Union、MoneyGram
供給の能力:	20〜30 /月

連絡先

詳細製品概要

ハイライト:

cap hinge durability tester

8 station lab testing equipment

LOF tester for cap hinges

Cap Hinge Durability and LOF Tester with 8 Test Stations

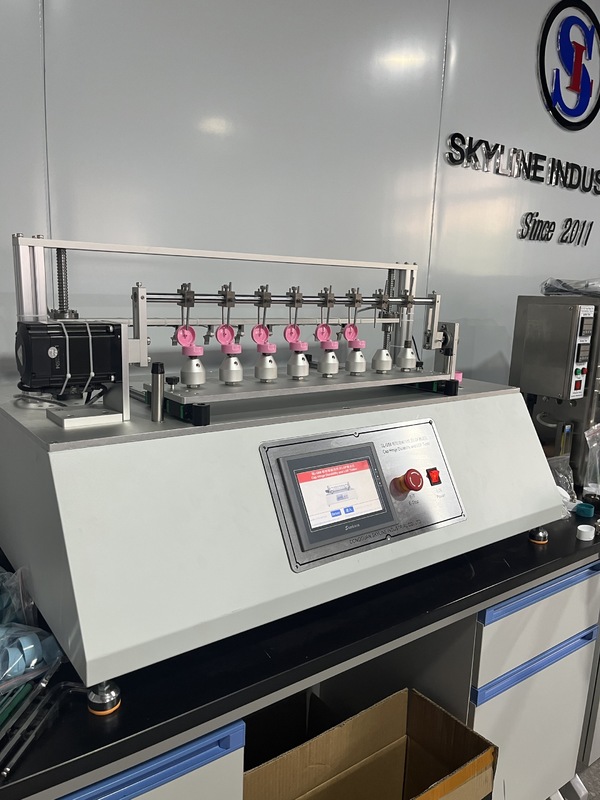

SL-Q58 Cap Hinge Durability and LOF Tester

This precision testing machine is specifically engineered for evaluating the durability and opening force (LOF) of flip-top caps on cosmetic tube packaging. It accurately simulates real-world usage conditions for comprehensive cap performance testing.

Key Features

Automated operation with preset counting and automatic stop function
Adjustable speed and angle settings for customized testing protocols
Specialized fixture design accommodates various cap sizes and shapes
Quick and easy sample installation process
Precise measurement of flip-top cap opening force values

Technical Specifications

Parameter	Specification
Test Size	Maximum 80mm (customizable)
Load Capacity	50kg
Test Angle	30-180° adjustable
Test Speed	0-30 times/min
Test Stations	8 pieces
Counter	0-999,999 (presettable)
Motor Type	Stepping motor
Dimensions	500 * 720 * 450mm
Power Consumption	200W
Voltage	220V/50HZ

The SL-Q58 tester provides reliable, repeatable results for quality control and product development, ensuring your packaging meets the highest durability standards.
