Name: ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: 試験用物件
Price: 4,500.00 USD
Availability: InStock

ホーム製品家具テスト機器

ISO 8307 Spong & Foam Ball Rebound Tester with 460mm or 500mm Drop Height and 16.8g Steel Ball for Accurate Rebound Rate Measurement

商品の詳細:

起源の場所:	中国
ブランド名:	SKYLINE
証明:	CE
モデル番号:	試験用物件

お支払配送条件:

最小注文数量:	1
価格:	negoitable
パッケージの詳細:	合板ケース
受渡し時間:	15営業日
支払条件:	T/T
供給の能力:	1ユニット/月

連絡先

詳細製品概要

高さを落とします:	460mm または 500mm	標準サンプルサイズ:	× （h） 100つのmmの（l）の× 100つのmmの（w）の50 mm
画面:	LCDタッチスクリーン	正確さ:	<1>
プリンター:	はい
ハイライト:	460mm Drop Height Spong & Foam Ball Rebound Tester , 500mm Drop Height Sponge Elasticity Tester , 16.8g Steel Ball Foam Rebound Rate Tester

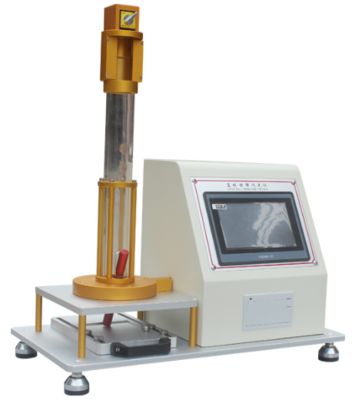

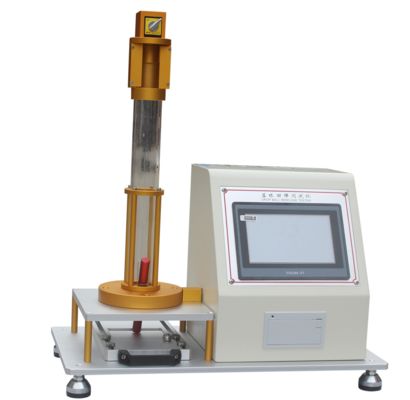

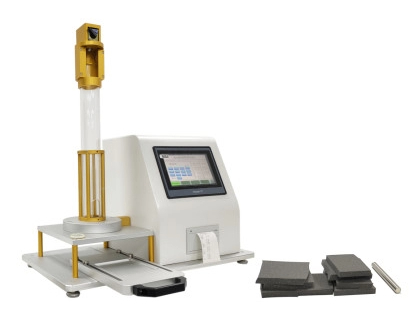

ISO 8307 Sponge & Foam Ball Rebound Tester Machine

Sponge Elasticity & Rebound Rate Tester

Machine Introduction

This rebound tester is designed and manufactured according to ASTM D3574, ISO 8307, and GB/T6670-97 standards. It precisely measures the falling ball resilience of soft polyurethane foams by calculating the maximum rebound height of a steel ball and determining the percentage of the falling height. The rebound rate accurately represents the foam's resilience characteristics.

Key Features

Microprocessor-controlled operation with touch screen interface
Chinese language display for easy operation
Built-in printer for test data output
High measurement accuracy (<1.5%)
Automatic calculation of average rebound rate
Safe, reliable, and precise testing mechanism

Technical Parameters

Parameter	Specification
Steel ball drop distance	GB 460±0.5%mm or ASTM/ISO 500±0.5%mm
Steel ball diameter	￠16±0.05 mm
Steel ball weight	16.8g ± 1.5 g
Accuracy	<1.5%
Display	LCD Touch Screen interface
Standard sample size	100mm(L) × 100mm(W) × 50mm(H)
Printer	Built-in
