WVTR Water Vapor Transmission Rate Test Chamber for fabrics/ textile/ membrane materials as per ASTM E96

WVTR Water Vapor Transmission Rate Test Chamber for fabrics/ textile/ membrane materials as per ASTM E96

ブランド名: Skyline
モデル番号: SL-FL609
Moq: 1
価格: 交渉可能
支払い条件: T/T、L/C、D/A、D/P、ウェスタンユニオン、マネーグラム、現金
供給能力: 30ユニット /月
詳細情報
起源の場所:
中国
証明:
CE, Rosh, Calibration
温度制御の精度:
18~50℃±0.5℃
温度の決断:
±0.1℃
調整可能な相対湿度:
40~95%RH; ±2%RH
気流:
0.1 ~ 0.8m/s
スピード:
1 ~ 15r/min
カップの数:
8 単層のASTM規格
機械のサイズ:
750×720×1400mm
重さ::
110kg
電源:
AC220V 50Hz 3500W
パッケージの詳細:
合板ケース
供給の能力:
30ユニット /月
ハイライト:

WVTR test chamber for fabrics

,

Water vapor transmission rate tester

,

ASTM E96 compliant textile tester

製品説明

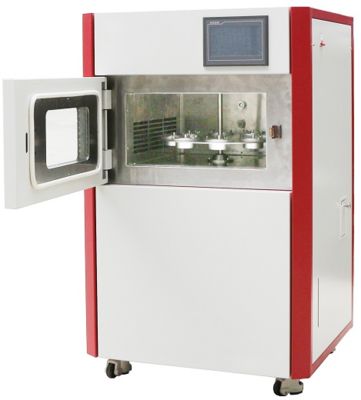

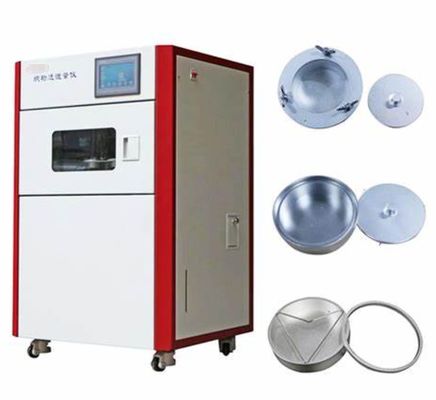

WVTR Water Vapor Transmission Rate Test Chamber for fabrics/textile/membrane materials as per ASTM E96
WVTR Water Vapor Transmission Rate Test Chamber for fabrics/membrane materials as per ASTM E96
WVTR Water Vapor Transmission Rate Test Chamber for fabrics/ textile/ membrane materials as per ASTM E96 0
Product Specifications
Attribute Value
Temperature control Accuracy 18 ~ 50℃±0.5℃
Temperature resolution ±0.1℃
Adjustable relative humidity 40 ~ 95%RH; ±2%RH
Air flow 0.1 ~ 0.8m/s
Speed 1 ~ 15r/min
The number of cups 8 ASTM standard for single layer
Machine size 750×720×1400mm
Weight 110kg
Power source AC220V 50Hz 3500W
Application
It is used for Water Vapor Transmission Rate tests of various fabrics, membrane materials and coated fabrics.
Test Standards
GB/T 12704, ASTM E 96, JIS L 1099, BS 7209
Features
  • Touch screen control, Chinese and English menu, man-machine dialogue mode, convenient operation.
  • Rotating sample placement frame, 1 ~ 15r/min speed adjustable, the test results are more uniform than fixed sample frames.
  • High precision temperature and humidity sensor, control using PID algorithm with small fluctuation, effectively preventing temperature and humidity overshoot.
  • Includes temperature and humidity calibration function to avoid sensor deviation caused by long-term use.
  • MCU control, color touch screen operation, modular design, temperature and humidity digital setting, intelligent control, real-time display of temperature and humidity and timing time.
  • Input parameters on the touch screen to calculate WVT g/(h.m²), WVP g/(h.MHg.m²), PV g.cm/(h.MHg.m²) value.
  • Instrument is equipped with PC software, temperature and humidity curve can be recorded, convenient for large data report calculation and printing, suitable for various standards and measurement methods.
Technical Parameters
Parameter Specification
Adjustable temperature control Accuracy 18 ~ 50℃±0.5℃
Temperature resolution ±0.1℃
Adjustable relative humidity 40 ~ 95%RH; ±2%RH
Air flow 0.1 ~ 0.8m/s
Speed 1 ~ 15r/min
The number of cups 8 ASTM standard for single layer
Machine size 750×720×1400mm
Weight 110kg
Power source AC220V 50Hz 3500W
