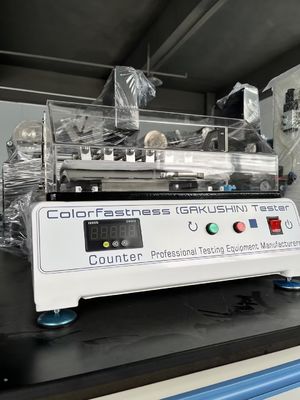

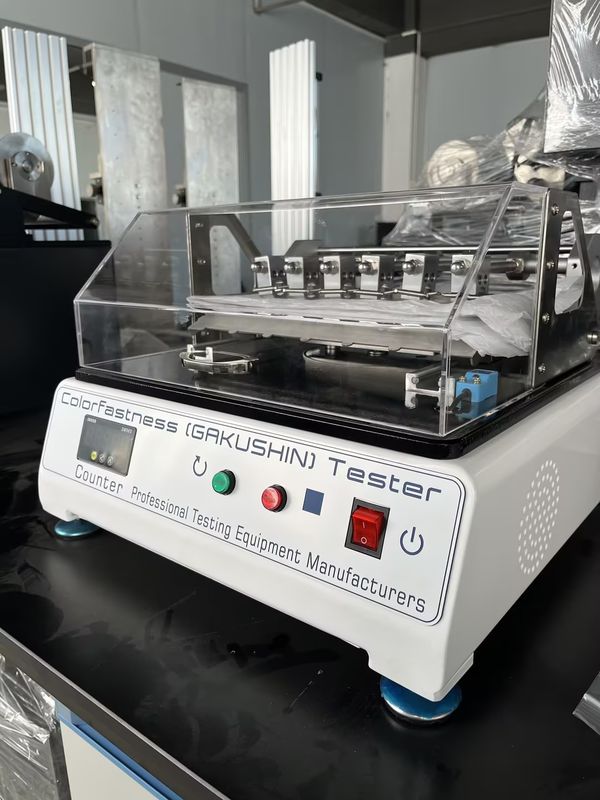

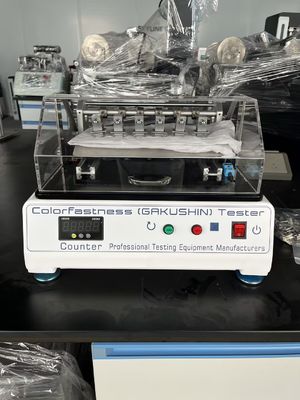

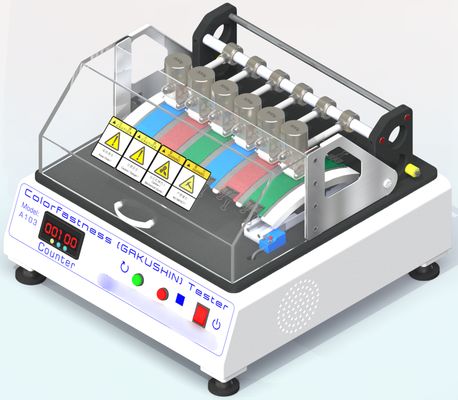

This machine is suitable for testing the rubbing fastness of dyed textiles. It evaluates the rubbing fastness of dyed textiles according to the gray sample card.
Use the friction testing machine, according to the specified method, make the sample and the friction white cotton cloth friction each other, the friction white cotton color degree and color rating gray sample card comparison, so as to determine its color fastness.
This instrument is manufactured according to JIS L0849 II (test method for fastness to rubbing).
| Work station | 6 Work station (6 specimens can be tested each time) |
| Friction head load | 2N(200g) |
| Test speed | 30r/min |
| Stroke of the friction table | 120mm |
| Friction table friction surface | R200mm |
| Friction hammer surface | R45mm |
| Distance between shaft rod and friction head center | 110mm |
| Sample size | 220mmx30mm, two pieces parallel to warp and zonal directions |
| Rubbing white cotton cloth size | 50mmx50mm |
| Counter | Can be set from 0 to 99999 times |
| Dimensions (WxDxH) | 45x47x36cm |
| Weight | ≈45Kg |
| Power supply | 1∮ AC 220V 3A |
