ISO 3795 ASTM D5132 Horizontal Flammability Tester with 38mm Fire Height for Textile and Automotive Testing

ISO 3795 ASTM D5132 Horizontal Flammability Tester with 38mm Fire Height for Textile and Automotive Testing

ブランド名: Skyline
モデル番号: SL-S33
Moq: 1セット
価格: 交渉可能
支払い条件: T/T 発送前
供給能力: 300セット/月
詳細情報
起源の場所:
中国
証明:
CE
発射ノズルの直径:
9.5mm
発射高度:
38mm+/-2
サンプル クランプ:
360×100mm
内寸:
330x50mm
下のサンプル:
25mm メタルワイヤの間のピッチは25mmです
ノズルからサンプルまでの距離:
19mm
外部次元:
460×200×400 mm ((LxWxH)
力:
AC-220 V 50 60 Hz 20 A
パッケージの詳細:
フィルムで包み込み,標準的な木製箱で梱包された1セットの機械
供給の能力:
300セット/月
ハイライト:

ISO 3795 Horizontal Flammability Tester

,

ASTM D5132 Flammability Test Chamber

,

38mm Fire Height Flammability Test Apparatus

製品説明
FMVSS302 Horizontal Flammability Testing Equipment
SL-S33 Horizontal Flammability Testing Equipment
The Horizontal Flammability Tester determines the flammability of textiles and automotive interior materials. This equipment complies with ISO 3795, ASTM D5132, FMVSS 302 and other international standards.
Designed for measuring comparative burn rates and burn resistance of textiles, particularly those used in automotive interiors. The tester features a draft-free stainless steel cabinet with observation window, sample holder, and door-mounted burner. The automatic gas and timing control system includes solenoid-controlled gas valve and automatic ignition timer.
Technical Specifications
Parameter Value
Fire nozzle diameter 9.5mm
Fire height 38mm ± 2mm
Sample clamp 360 × 100mm
Interior dimension 330 × 50mm
Sample below 25mm pitch between metal wire
Marked line Starting point 38mm / End point 292mm from igniting point
Distance from nozzle to sample 19mm
Power 220/110 V 50/60 Hz 2 A
Weight 18 Kg
Flammability chamber dimensions 381 × 203 × 356mm
Overall dimensions 460 × 200 × 400mm (L×W×H)
Compliance Standards
  • ISO 3795
  • FMVSS 302
  • DIN 75200
  • SAE J369
  • ASTM D5132
  • JIS D1201
  • BSAU 1690
NOTE: This testing equipment is in stock. Delivery time: 1-3 working days.
View Horizontal Flammability Tester Operation Video

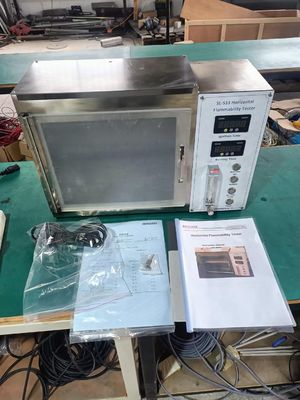

Control Interface Features
ISO 3795 ASTM D5132 Horizontal Flammability Tester with 38mm Fire Height for Textile and Automotive Testing 0
  • Ignition Timer: Controls ignition time (factory setting: 15 seconds)
  • Burning Timer: Measures flame spread time between marking lines
  • Start Timing: Activated when flame reaches first marker line
  • Stop Timing: Pressed when flame reaches second marker line
  • Gas Control: Opens gas valve for ignition when pressed
  • Power: Main instrument power switch
